146 parts
● Active2024–Present
Talaria Sting MX5 Pro
Voltage
72V
Rated Power
8 kW
Peak Power
16 kW
Battery
3240 Wh
Top Speed
55 mph
Weight
150 lb
Drive chainBrakes Mineral Oil — 220mmWheels 21"F / 18"RMSRP $5,999
Detailed Specs & Notes

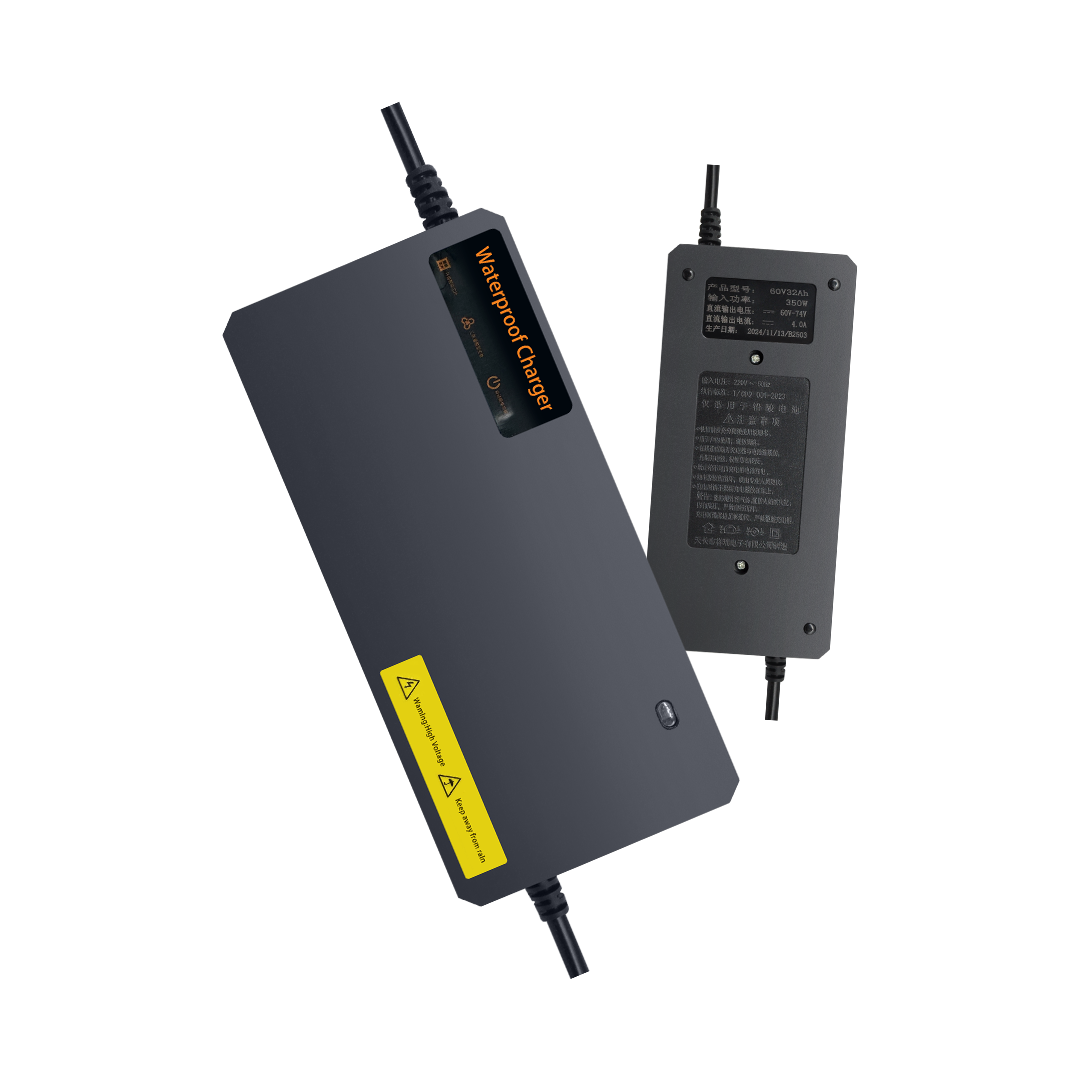

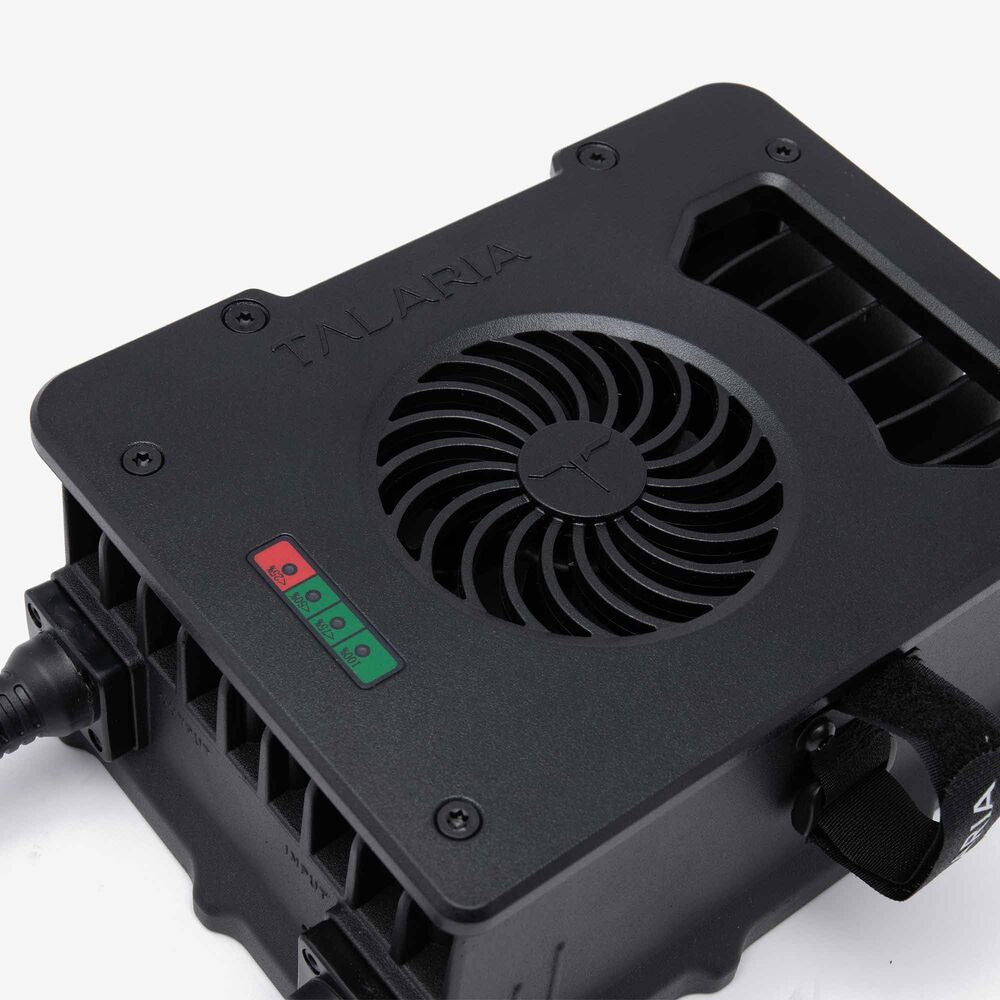

72V system — charger and controller incompatible with 60V models. Uses 418 chain (not 420). Larger 21"/18" wheels.
Catalog Sting MX5 Pro maps to Talaria's STING PRO MX OEM page: 72V/40Ah (2880Wh) with Samsung 50s cells, 5500W nominal / 13440W peak, and 500 N·m peak torque at the rear wheel. Net weight is 76 kg with battery, seat height 840 mm, drive gearbox primary plus chain secondary at ratio 9.1, and OEM tires are CST 70/100-19 front and 80/100-19 rear.
Two catalog guesses are dropped here. Older catalog wheel text said 21/18 for MX5 Pro — OEM Sting Pro lists 19/19, so we use 19/19. Catalog also noted a 418 chain pitch; the OEM page does not state pitch, so pitch is omitted rather than repeated.
Parts coverage includes 70/100-19 fronts, Warp9 bars, TRP brakes, mineral fluid, MX5-tagged pads and Formula caliper items, and a Warp9 220 mm rear rotor that remains unverified for MX5 on the maker pages. WiredWhips sells parts for many e-moto brands, not complete MX5 Pro bikes.
Specs
| Battery pack (OEM Sting Pro MX) | 72V/40Ah (2880Wh); Samsung 50s cells[1] |
|---|---|
| Nominal / peak power (OEM) | 5500W nominal / 13440W peak[1] |
| Peak torque on rear wheel (OEM) | 500 N·m[1] |
| Wheels/tires (OEM) | Front 70/100-19 / Rear 80/100-19 (CST)[1] |
| Drive (OEM) | Gearbox primary + chain secondary (ratio 9.1)[1] |
| Net weight (OEM) | 76 kg (battery included)[1] |
| Seat height (OEM) | 840 mm[1] |
| Catalog wheel note (overridden) | Catalog listed 21"/18" for MX5 Pro — OEM Sting Pro MX lists 19/19 CST; 21/18 omitted as unsourced for this hub[2] |
| Catalog chain note (unsourced OEM pitch) | Catalog notes 418 chain for MX5 Pro — OEM page does not state pitch; pitch omitted here[2] |
Fitment notes
Electrics follow 72V/40Ah Sting Pro — not Sting R 60V/45Ah and not Komodo 97.2V. Tires follow OEM 70/100-19 front and 80/100-19 rear. 70/100-19 Maxxis and Pirelli fronts verify for MX5 Pro; Komodo is Does not fit on those PDPs. Warp9 220 mm rear rotor lists MX5 Pro as unverified (maker pages name MX3/MX4/XXX). TRP DH-R EVO and Warp9 bars verify for MX5 Pro on their Fits rows. Chain pitch stays unpublished until an OEM source states it.
Most-needed parts
- Maxxis Maxxcross SI M7311 Front Tire 70/100-19 - Sting MX3 / MX4$124.99
- Pirelli Scorpion MX32 Front Tire 70/100-19 - Sting MX3 / MX4$72.99
- Warp 9 Handlebar - 3" Rise 31.8mm (Sting MX3 / MX4)$109.99
- TRP DH-R EVO Hydraulic Brakes - Surron / Talaria / E-Ride Pro$362.99
- Magura Royal Blood Mineral Oil (Brake Fluid) - All Talaria Models for Talaria (Dragon, Komodo +5 more)$11.99
- OEM-Style Sintered Brake Pads - Large Caliper (MX5 class)$30.99
- Formula EB9 eMoto Brake Set - Talaria MX5 / Altis Sigma class$934.99
- OEM Rear Brake Caliper Mount - Talaria Sting MX5 Pro$75.99
- Bel-Ray Hypoid Gear Oil 80W-90 - Talaria Gearbox$16.99
- Warp 9 220mm Rear Brake Rotor Floating OEM Talaria Hub$86.99
Guides
FAQ
Is MX5 Pro 72V or 60V?
OEM Sting Pro MX — the page that maps to catalog MX5 Pro — lists 72V/40Ah (2880Wh). Sting R MX is the 60V/45Ah platform. Match chargers and packs to 72V for MX5 Pro.
Does MX5 Pro use 21-inch front tires?
Not per OEM Sting Pro MX, which lists 70/100-19 front and 80/100-19 rear CST. Catalog 21/18 text for MX5 Pro is overridden on this hub.
What chain pitch does MX5 Pro use?
We do not publish one. Catalog mentioned 418, but the OEM Sting Pro page does not state pitch. Measure your chain or wait for a sourced OEM pitch before ordering by number alone.
Is the Warp9 220 rear rotor verified for MX5?
No. That PDP marks Sting MX5 Pro unverified because Warp9's maker pages list MX3, MX4, and XXX — not MX5. Confirm caliper and hub geometry before ordering.
Sources
- https://talaria.cn/html/117.html (accessed 2026-10-24)
- https://wiredwhips.com/data/catalog.json (accessed 2026-10-24)
Last reviewed 2026-10-24 by Mr Content, WiredWhips · reviewed by WiredWhips SEO desk
⚡ Popular Upgrades
DID 428 NZ Chain (428NZ) - Non-Ring Standard (Gold or Natural)
$127.99
DID 428 VX X-Ring Chain (428VX) - Sealed Premium (Gold or Natural)
$143.99
Currently unavailable
DID 428 NZ Clip Connecting Link (428NZCL) - Non-Ring Type
$6.99
Currently unavailable
DID 428 VX Press-Fit Connecting Link (428VXCL) - X-Ring Type
$10.99
Gearbox Oil 80W-90 - Talaria Sting (All Sting Models with Gearbox)
$19.99
D.I.D 428 X-Ring VX Chain - MX5 class
$145.99
146 parts across 10 categories
BODY & FRAME
16 parts
Aftermarket
Skid Plate / Bash Guard - Talaria Sting
Skid Plate
Protects motor, battery bottom, and frame underside from rocks and roots. High-demand item for trail riders. Aluminum version preferred over HDPE for durability. Check model year - MX3 vs MX4 bash guard fitment may differ.
$86.99
+ shipping
OEM
OEM Front Fender - Sting MX3 / MX4
Front Fender
Sting front fender - verify X3 separately (different wheel size).
$38.99
+ shipping
OEM
OEM Rear Fender - Sting MX3 / MX4
Rear Fender
OEM rear fender for the Talaria Sting MX3, MX4, and MX4 Expert. Direct OEM replacement with correct mounting points and profile. The rear fender is the most common body panel cracked in tip-overs.
$18.99
+ shipping
OEM
OEM Side Panels - Sting MX3 / MX4
Side Panels / Plastics
OEM side panels for the Talaria Sting MX3 and MX4. Most frequently cracked in hard tip-overs - worth keeping a spare set if you ride rocky terrain. MX4 Expert and MX5 Pro use different panel profiles.
Currently unavailable
Aftermarket
Frame Guard Set - Talaria Sting
Frame Guards
Adhesive frame protection kit. Guards against boot rub and rock chips on frame tubes. Very popular accessory - most riders add this along with a skid plate.
$44.99
+ shipping
Aftermarket
Heavy Hitter Billet Skid Plate - Talaria Sting
Skid Plate
7075 billet skid with replaceable bash plate for Talaria Sting MX3/MX4/MX5. Will not fit EBMX XTA Core motor without mods.
$235.99
+ shipping
Aftermarket
Battery Rattle Stopper for Talaria, Surron, E Ride Pro
Accessory
Battery Rattle Stopper for Talaria, Surron, E Ride Pro for Talaria (Dragon, Komodo, Sting MX3 +4 more). Match photos, connectors, and mounting points to your bike before ordering.
$24.99
+ shipping
Aftermarket
Guts Racing Seat Cover for Talaria XXX
Seat
Guts Racing Seat Cover for Talaria XXX for Talaria (Dragon, Komodo, Sting MX3 +4 more). Match photos, connectors, and mounting points to your bike before ordering.
$100.99
+ shipping
Aftermarket
Extension Wire for Talaria XXX/MX4
Accessories
Extension Wire for Talaria XXX/MX4 for Talaria (Sting MX3, Sting MX4 Expert, Sting MX5 Pro +2 more). Match photos, connectors, and mounting points to your bike before ordering.
$10.99
+ shipping
Aftermarket
Warp 9 Headset Spacer Kit and Stem Lock (No Fender Mount)
Fender
Warp 9 Headset Spacer Kit and Stem Lock (No Fender Mount) for Talaria (Dragon, Komodo, Sting MX3 +4 more). Match photos, connectors, and mounting points to your bike before ordering.
$54.99
+ shipping
Aftermarket
Lewis EB eMoto Brake Kit
Accessories
Lewis EB eMoto Brake Kit for Talaria (Dragon, Komodo, Sting MX3 +4 more). Match photos, connectors, and mounting points to your bike before ordering.
$401.99
+ shipping
Aftermarket
KyVex Billet Aluminum Motor Cover - Talaria MX3/MX4/MX5
Motor Cover
Billet motor cover for Talaria MX3/MX4/MX5. Confirm bolt pattern if Dragon uses a different case cover.
$100.99
+ shipping
Aftermarket
Aluminum Adjustable Kickstand - E-Moto
Kickstand
Adjustable 6061 aluminum kickstand for light e-motos. Choose standard fitment variant (not Ultra Bee-specific).
$62.99
+ shipping
Aftermarket
Kickstand Spring Set - E-Moto
Kickstand Spring
OEM-style kickstand spring hardware kit for light e-moto side stands.
$23.99
+ shipping
AftermarketType2FrontFender
Talaria OEM Front Fender Type 2 (Type2FrontFender) - Cross-Compatible
Fenders
OEM Talaria fender that comes on newer Talaria bikes. Cross-compatible with Arctic Leopard XE Pro, E-Ride Pro, Ventus, and Zero XB platforms sharing same fork geometry.
$37.99
+ shipping
OEM
OEM
OEM Subframe - Sting MX3 / MX4
Subframe
OEM rear subframe for the Talaria Sting MX3, MX4, and MX4 Expert. The aluminum subframe rear tabs are vulnerable in hard tip-overs - inspect for cracks at the mounting points regularly. Direct OEM fit, no modification required.
Currently unavailable
BRAKES
22 parts
OEM
Disc Brake Pads - Sting MX3 / MX4 / X3 (Kool Stop Electric Compound)
Brake Pads
MX4 Expert uses Magura MT-5 - needs different pads. Do not order these for Expert.
$25.99
+ shipping
Universal
Magura Royal Blood Mineral Oil (Brake Fluid) - All Talaria Models for Talaria (Dragon, Komodo +5 more)
Brake Fluid
ALL Talaria models use mineral oil - NEVER use DOT fluid. DOT will destroy brake seals immediately.
$11.99
+ shipping
Aftermarket
Maxima Mineral Brake Oil 120ml - Talaria Sting (All Models) (Dragon +6 more)
Brake Fluid
CRITICAL: Talaria Sting uses Tektro hydraulic brakes requiring MINERAL OIL only. Using DOT fluid destroys the seals. Confirmed compatible with MX3, MX4, X3.
$12.99
+ shipping
Aftermarket
Warp 9 220mm Front Brake Rotor Floating - Talaria
Brake Rotor / Disc
Warp 9 220mm floating front rotor upgrade commonly used on Talaria platforms including Komodo/Dragon. Verify hub/bolt pattern for your exact hub before install.
$86.99
+ shipping
Aftermarket
Warp 9 220mm Rear Brake Rotor Floating OEM Talaria Hub
Brake Rotor / Disc
Warp 9 floating rear rotor for OEM Talaria hubs. Strong upgrade over thin stamped stock rotors.
$86.99
+ shipping
Aftermarket
Warp 9 220mm Front Brake Rotor Fixed 2.3mm
Brake Rotor / Disc
Warp 9 fixed 220mm front rotor. Verify bolt pattern/hub for Dragon ABS setups before install.
$86.99
+ shipping
OEM
OEM-Style Sintered Brake Pads - Large Caliper (MX5 class)
Brake Pads
Sintered OEM-style pads for large e-moto calipers used on Talaria MX5-class brakes (also E-Ride 3.0/SR, Altis Sigma). One set per caliper.
$30.99
+ shipping
OEM35533-56C00-000
OEM Talaria MX5 OEM Brake Pads (2-piece set) (35533-56C00-000)
Brake Pads
OEM pad set for Talaria MX5 large calipers. Purchase one set per caliper (front and rear separately).
$28.99
+ shipping
Aftermarket
E-Ride Type 2 Performance Brake Pads - MX5 / Sigma class
Brake Pads
Type 2 pad kit listed for E-Ride Pro 3.0/SR, Altis Sigma, Talaria MX5 and similar large-caliper e-motos.
$24.99
+ shipping
OEM35461-56C00-000
OEM Talaria MX5 OEM Brake Levers (35461-56C00-000)
Brake Levers
OEM replacement brake levers for Talaria Sting MX5 master cylinders.
$25.99
+ shipping
Currently unavailable
Aftermarket
TRP DH-R EVO Hydraulic Brakes - Surron / Talaria / E-Ride Pro
Brake Assemblies
TRP DH-R EVO full brake set (front and rear hydraulic). Top-tier upgrade for Surron and Talaria Sting. Komodo uses a different caliper mount geometry - confirm fitment before ordering.
$362.99
+ shipping
OEM
OEM Front Brake Lever - Sting MX3 / MX4
Brake Levers
OEM front brake lever for the Talaria Sting MX3 and MX4. Tektro Auriga hydraulic caliper - direct OEM replacement. If only the lever tip broke, replace the lever; if the piston or reservoir is damaged, replace the master cylinder assembly.
$25.99
+ shipping
Aftermarket
Formula EB9 eMoto Brake Set - Talaria MX5 / Altis Sigma class
Brake Assembly (Complete)
Full Formula EB9 set. Choose the Talaria MX5/Altis Sigma mount option on the product page. Confirm caliper spacing on Dragon/Komodo before ordering.
$934.99
+ shipping
Aftermarket
Warp 9 Folding Brake Levers - Talaria / Altis / E-Ride
Brake Levers
Forged folding levers for Talaria / Altis / E-Ride Pro brake perches. Preserves OEM brake-switch function.
$57.99
+ shipping
Aftermarket
Formula E-Moto 4-Piston Brake Set
Brake Assembly (Complete)
Formula E-Moto brakes pairing motorcycle master cylinder feel with 4-piston Cura-based calipers. Confirm adapter/rotor size for Dragon.
$340.99
+ shipping
OEM
OEM Front Brake Rotor 220mm - Talaria Sting
Brake Rotors
OEM 220mm front brake rotor for Talaria Sting. Fits MX3, MX4, MX5, and most variants. Confirm Dragon fitment before ordering.
$42.99
+ shipping
Currently unavailable
OEM
OEM Rear Brake Rotor 220mm - Talaria Sting
Brake Rotors
OEM 220mm rear brake rotor for Talaria Sting MX3, MX4, and MX4 Expert. Verify fitment on Dragon before ordering.
$42.99
+ shipping
Currently unavailable
Aftermarket
Formula eMoto Brakes
Brake Caliper
Formula eMoto Brakes for Talaria (Dragon, Komodo, Sting MX3 +4 more). Match photos, connectors, and mounting points to your bike before ordering.
$340.99
+ shipping
Aftermarket
Warp 9 Rear Brake Rotor
Brake Rotor / Disc
Warp 9 Rear Brake Rotor for Talaria (Dragon, Komodo, Sting MX3 +4 more). Match photos, connectors, and mounting points to your bike before ordering.
$86.99
+ shipping
Aftermarket
Warp 9 Titanium Rotor Bolts
Brake Rotor / Disc
Warp 9 Titanium Rotor Bolts for Talaria (Dragon, Komodo, Sting MX3 +4 more). Match photos, connectors, and mounting points to your bike before ordering.
$39.99
+ shipping
OEM
OEM Rear Brake Caliper Mount - Talaria Sting MX5 Pro
Brake Hardware
OEM rear brake caliper mounting bracket. Geometry is MX5 Pro-specific - not compatible with MX3/MX4.
$75.99
+ shipping
Aftermarket
Aftermarket
Galfer E-Bike Brake Pads - Talaria
Brake Pads
Galfer e-bike compound pads for Talaria calipers. Sold per wheel; confirm compound for your rotor.
$42.99
+ shipping
COCKPIT
25 parts
Aftermarket
ODI Emig Racing Lock-On Grips (Talaria Sting) for Talaria (Dragon, Komodo +5 more)
Grips
Lock-on grips for standard 22mm dirt bike handlebars. Fits all Talaria Sting models. Multiple color options. Lock-on design eliminates grip rotation - preferred for MX/off-road use.
$31.99
+ shipping
Aftermarket
Warp 9 Handlebar - 3" Rise 31.8mm (Sting MX3 / MX4)
Handlebars
Warp 9 is a Talaria specialist brand. Confirmed compatible with MX3 and MX4. Requires Warp 9 Direct Bar Mount Stem or similar 31.8mm adapter.
$109.99
+ shipping
OEM
OEM Footpeg Mount - Sting / X3
Switches & Controls
OEM footpeg mounting hardware for Talaria Sting and X3 models. Includes pin, spring, and retaining clip. Commonly needed after tip-overs that bend or shear the mounting pin - inspect after hard crashes.
$9.99
+ shipping
Aftermarket
GritShift Heavy Hitter Grappler Billet Foot Pegs - Talaria
Foot Pegs
CNC billet Grappler pegs with raised center cleats. Tagged for Talaria Sting, XXX, and Komodo platforms.
$113.99
+ shipping
Aftermarket
KKE CNC Billet Foot Pegs - Talaria
Foot Pegs
7075-T6 CNC pegs listed for Talaria Sting MX3/MX4/MX5, Komodo, and XXX. Uses OEM springs/pins.
$75.99
+ shipping
Aftermarket

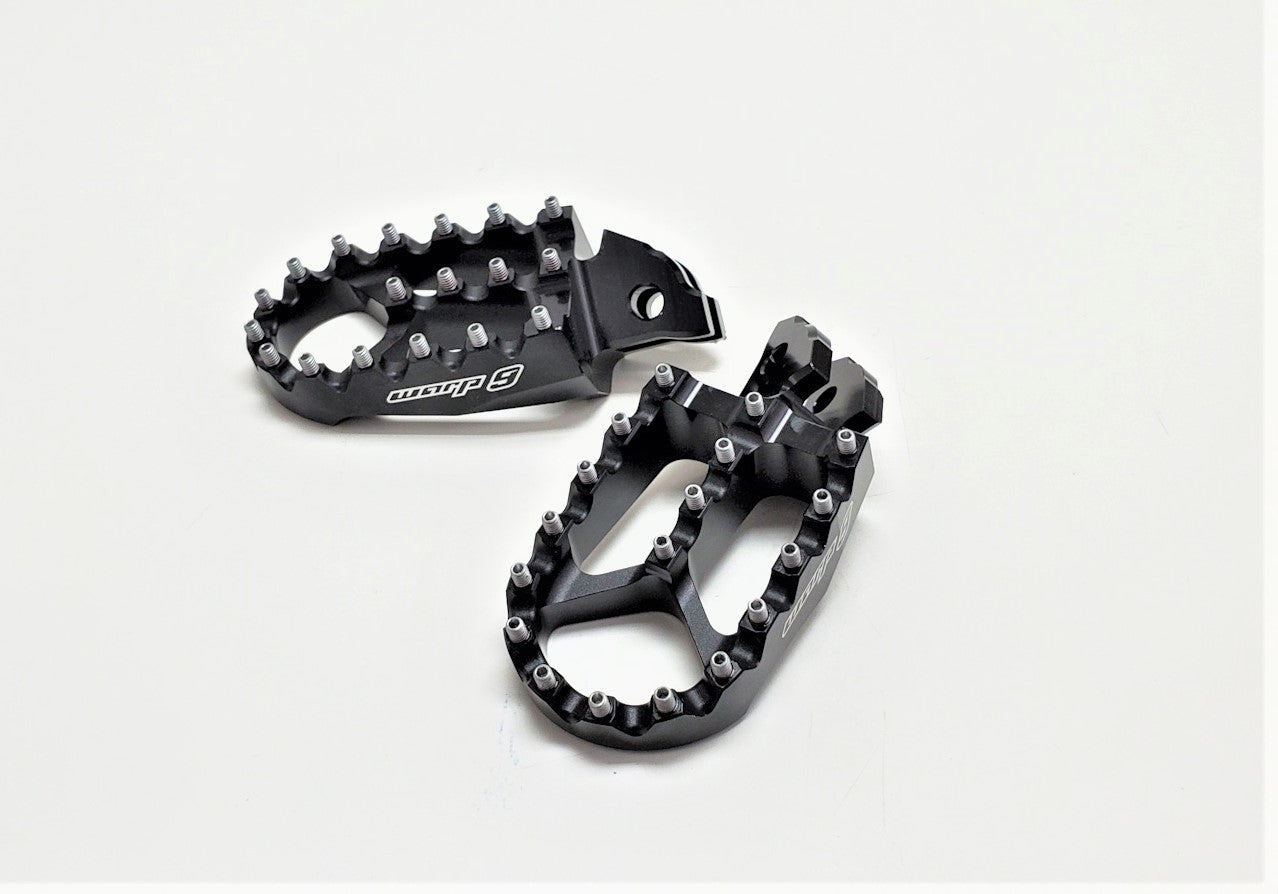

Warp 9 Elite Foot Pegs - Talaria MX / XXX / Altis
Foot Pegs
Forged/CNC Elite pegs for Talaria MX3/MX4/MX5/XXX and Altis Sigma. Wider platform vs standard Warp 9 pegs.
$189.99
+ shipping
Aftermarket
Warp 9 Transformer Direct Bar Mount Stem
Stem
Direct-mount stem supporting MX and MTB bar standards with optional extra rise. Common Talaria/Sur-Ron cockpit upgrade.
$135.99
+ shipping
Aftermarket
Acerbis X-Factory Handguards
Handguards
Full wrap handguards commonly fitted to Talaria/Sur-Ron bars. Confirm clamp diameter for your bar setup.
$100.99
+ shipping
Aftermarket
Warp9 Sigma Elite Foot Pegs - Talaria Sting / Altis Sigma
Foot Pegs
Warp9 Sigma Elite CNC foot pegs designed for the Talaria Sting platform. Not confirmed to fit the Komodo or Dragon.
$158.99
+ shipping
Aftermarket
Warp9 Adjustable Footpeg Mount - Talaria Sting
Foot Pegs
Warp9 adjustable footpeg mount with multiple position options for Talaria Sting. Not confirmed to fit the Komodo or Dragon.
$207.99
+ shipping
Currently unavailable
Aftermarket
Warp 9 Direct Bar Mount Stem
Handlebars
Warp 9 Direct Bar Mount Stem for Talaria (Dragon, Komodo, Sting MX3 +4 more). Match photos, connectors, and mounting points to your bike before ordering.
$135.99
+ shipping
Aftermarket
Odi Ruffian Half-Waffle MX Grips for Talaria (Dragon, Komodo +5 more)
Grips
Odi Ruffian Half-Waffle MX Grips for Talaria (Dragon, Komodo +5 more) for Talaria (Dragon, Komodo, Sting MX3 +4 more). Measure bar diameter and lock-on vs glue-on before swapping.
$19.99
+ shipping
Aftermarket
Warp 9 Headset Spacer Kit and Stem Lock for SurRon LBX / Talaria Sting
Stem
Warp 9 Headset Spacer Kit and Stem Lock for SurRon LBX / Talaria Sting for Talaria (Sting MX3, Sting MX4 Expert, Sting MX5 Pro +2 more). Match photos, connectors, and mounting points to your bike before ordering.
$54.99
+ shipping
Aftermarket
Odi Ruffian No-Waffle MX Grips for Talaria (Dragon, Komodo +5 more)
Grips
Odi Ruffian No-Waffle MX Grips for Talaria (Dragon, Komodo +5 more) for Talaria (Dragon, Komodo, Sting MX3 +4 more). Measure bar diameter and lock-on vs glue-on before swapping.
$19.99
+ shipping
Aftermarket
Odi Rogue Single-Ply MX Grips for Talaria (Dragon, Komodo +5 more)
Grips
Odi Rogue Single-Ply MX Grips for Talaria (Dragon, Komodo +5 more) for Talaria (Dragon, Komodo, Sting MX3 +4 more). Measure bar diameter and lock-on vs glue-on before swapping.
$16.99
+ shipping
Aftermarket
Warp 9 Foot Pegs for Talaria & Altis
Foot Pegs
Warp 9 Foot Pegs for Talaria & Altis for Talaria (Dragon, Komodo, Sting MX3 +4 more). Match photos, connectors, and mounting points to your bike before ordering.
$135.99
+ shipping
Aftermarket40622-54000-000
Left Footpeg Holder (Kickstand Side) Talaria XXX
Foot Pegs
Left Footpeg Holder (Kickstand Side) Talaria XXX for Talaria (Dragon, Komodo, Sting MX3 +4 more). Match photos, connectors, and mounting points to your bike before ordering.
$35.99
+ shipping
Aftermarket
OEM Replacement Throttle for Talaria Sting R, Pro & XXX
Throttle
OEM Replacement Throttle for Talaria Sting R, Pro & XXX for Talaria (Sting MX3, Sting MX4 Expert, Sting MX5 Pro +2 more). Match photos, connectors, and mounting points to your bike before ordering.
$102.99
+ shipping
Aftermarket
Adjustable Foot Peg Mounts - Talaria
Foot Peg Mounts
CNC adjustable peg mounts for Talaria Sting MX3/MX4/MX5. MX4 kickstand may need minor filing.
$135.99
+ shipping
Aftermarket
Footpeg Pins, Springs & Washers Kit
Foot Pegs
Replacement peg hardware kit for Sur-Ron, E-Ride Pro, and Talaria platforms.
$12.99
+ shipping
Aftermarket
CNC Stem Riser 25mm (1 inch) - E-Moto Forks
Stem
1-inch CNC stem riser for light e-moto forks. Hardware not included.
$25.99
+ shipping
Aftermarket
ODI Aluminum Bar End Plugs for Talaria
Bar Ends
6061 aluminum bar-end plugs sold as a pair. Fits most e-moto bar IDs.
$25.99
+ shipping
Aftermarket
RTECH HP2 Handguards
Handguards
Lightweight HP2 handguard set with adjustable side positions for e-moto bars.
$42.99
+ shipping
OEM
OEM
OEM Hand Grip Set - Talaria
Grips
OEM slip-on grip set for all Talaria models. The stock grips tend to rotate under aggressive riding or in wet conditions. If you experience grip migration, upgrade to lock-on grips - ODI Emig and Rogue Air both fit the 22.2mm Talaria bar.
$20.99
+ shipping
Aftermarket
Aftermarket
Pro Taper Footpegs - Talaria Sting (Wide Platform)
Foot Pegs
Wide-platform aftermarket footpegs. Bigger standing platform than OEM. Pro Taper is a top choice for MX riders. Verify mounting tab compatibility - check for Talaria-specific listing or universal fit with correct mounting dimensions.
$69.99
+ shipping
DRIVETRAIN
20 parts
Aftermarket428NZ
DID 428 NZ Chain (428NZ) - Non-Ring Standard (Gold or Natural)
Chain
428 pitch non-sealed chain. OEM specification chain for Electric Motion Epure Race/Sport (DID 428 NZ Gold, 128 links, 11T front / 57T rear OEM). Talaria MX5 Pro uses 428 pitch - different from MX3/MX4 which use 420. Talaria Dragon and Komodo compatibility with 428 is probable (same platform tier as MX5 Pro) but requires. Rawrr Mantis confirmed 428 pitch. Replace chain and sprockets as a matched set.
$127.99
+ shipping
Aftermarket428VX
DID 428 VX X-Ring Chain (428VX) - Sealed Premium (Gold or Natural)
Chain
Premium upgrade over the 428 NZ. X-ring seals reduce friction and extend chain life compared to non-sealed. DID describes this as their most popular on- and off-road chain. Chain Life Index 2,700 (vs. non-ring chains around 400-600). Compatible with the same 428-pitch models as the 428 NZ - select this for riders who want longer service intervals. Talaria Dragon and Komodo require.
$143.99
+ shipping
Currently unavailable
Aftermarket428NZCL
DID 428 NZ Clip Connecting Link (428NZCL) - Non-Ring Type
Chain
For DID 428 NZ non-ring chain used on Sur-Ron Ultra Bee, Talaria MX5 Pro (note: MX5 Pro OEM specifies 418 pitch - verify before using 428 link), Rawrr Mantis, and Electric Motion Epure. Replace connecting link every chain swap - never reuse. Electric Motion Epure OEM chain is 428 x 128L.
$6.99
+ shipping
Currently unavailable
Aftermarket428VXCL
DID 428 VX Press-Fit Connecting Link (428VXCL) - X-Ring Type
Chain
Required when re-joining a DID 428 VX x-ring chain. Includes x-ring seals. For Sur-Ron Ultra Bee and other 428-pitch bikes running the DID 428 VX sealed chain. Press-fit type - requires chain tool (chain breaker/press) for proper installation. Chain Life Index of 428 VX is approximately 2,700 - replace connecting link even if chain is reused.
$10.99
+ shipping
OEM
OEM Drive Chain 420 x 104L - Sting MX3 / MX4 / MX4 Expert
Chain
420 chain for MX3/MX4/Expert. MX5 Pro uses 418 - do not substitute.
$46.99
+ shipping
OEM
OEM Drive Chain 418 x 104L - Sting MX5 Pro
Chain
MX5 Pro only - 418 pitch. Not the same as MX3/MX4 420 chain.
$46.99
+ shipping
Aftermarket
Gearbox Oil 80W-90 - Talaria Sting (All Sting Models with Gearbox)
Grease
Talaria Sting gearbox is a key differentiator vs Sur-Ron. GritShift recommends Bel-Ray as the best option found for the Sting gearbox. Service via fill bolt on right crankcase. Replace every ~600 miles or when color darkens.
$19.99
+ shipping
Aftermarket
D.I.D 428 X-Ring VX Chain - MX5 class
Chain
428 X-Ring chain listed for Talaria MX5 (cut to length required). Confirm Dragon stock chain pitch before ordering 428 vs 420.
$145.99
+ shipping
OEM22090-56000-000
OEM Front Sprocket 13T - Sting MX3 / MX4
Front Sprocket
Stock 13T. MX4 Expert comes with 53T rear - may run different gearing up front.
$23.99
+ shipping
OEM22090-54000-000
OEM Front Sprocket 14T - X3 (xXx)
Front Sprocket
OEM 14T front sprocket for the Talaria X3 (xXx) jackshaft drive. Not interchangeable with any Sting model - the X3 uses a different drive configuration. Check your model carefully before ordering.
Currently unavailable
OEM
OEM Rear Sprocket 48T - Sting MX3 / MX4
Rear Sprocket
OEM 48T rear sprocket for the Talaria Sting MX3 and MX4 - stock gearing on both. The MX4 Expert ships with 53T for more low-end punch. Going to 44T adds top speed at the expense of launch acceleration.
$29.99
+ shipping
OEM
OEM Chain Guide - Sting MX3 / MX4
Motor Mount
MX4 Expert has improved chain guide - verify fitment before ordering MX3 guide for Expert.
$74.99
+ shipping
Aftermarket
Warp 9 Front Sprocket 13T / 14T - 428 Pitch (MX5 Pro / Dragon / Komodo)
Front Sprocket
428 pitch for MX5 Pro / Dragon / Komodo. Do NOT order for MX3/MX4 (those use 420 pitch with a different spline). Replace chain when replacing sprocket.
$44.99
+ shipping
Aftermarket
Technomousse Minicross Foam Tube - Surron / Talaria
Tires & Tubes
Technomousse solid foam tube insert that eliminates puncture flats. Designed for Talaria Sting wheels. Komodo and Dragon may have different wheel dimensions - confirm before ordering.
$167.99
+ shipping
OEM
OEM Gearbox Assembly - Sting MX3 / MX4
Gearbox
Internal gearbox unique to Talaria Sting. Change 80W90 oil every 20-30 hours of riding.
$553.99
+ shipping
Aftermarket
Warp 9 Rear Sprocket
Rear Sprocket
Warp 9 Rear Sprocket for Talaria (Dragon, Komodo, Sting MX3 +4 more). Match photos, connectors, and mounting points to your bike before ordering.
$52.99
+ shipping
Aftermarket
Warp 9 Chain & Sprocket Combo
Chain
Warp 9 Chain & Sprocket Combo for Talaria (Dragon, Komodo, Sting MX3 +4 more). Match photos, connectors, and mounting points to your bike before ordering.
$122.99
+ shipping
Aftermarket
EK 420 Chain
Chain
EK 420 Chain for Talaria (Dragon, Komodo, Sting MX3 +4 more). Match photos, connectors, and mounting points to your bike before ordering.
$69.99
+ shipping
OEM
OEM Rear Wheel Bushing Set (Left + Right) - Talaria Sting MX5 Pro
Wheel Bearings & Bushings
OEM rear wheel bushing set specific to MX5 Pro larger axle. Sold as a set (left + right).
$18.99
+ shipping
Currently unavailable
Aftermarket
Aftermarket
Warp 9 Chain & Sprocket Combo 48T OEM Size + EK 420
Chain
Warp 9 rear sprocket 48T OEM size paired with EK 420 120L chain. Replace chain and sprocket together.
$127.99
+ shipping
ELECTRICAL
15 parts
OEM50180-56010-000
OEM Talaria OEM Throttle (Green Connector) (50180-56010-000) - MX4 / MX5 / XXX
Throttle
OEM throttle for Talaria MX4/MX5/XXX green-connector bikes. Does not fit MX3 or Komodo. Confirm Dragon connector color before ordering.
$90.99
+ shipping
OEM50300-56C00-000
OEM Talaria OEM Color Display (50300-56C00-000) - MX5 / XXX Pro class
Display / Dashboard
OEM color display for Talaria Sting MX5 and XXX Pro. Does not fit MX4 or standard XXX. Confirm Dragon dash connector/harness before ordering.
$223.99
+ shipping
OEM
OEM Charger 72V - Sting MX5 Pro
Charger
OEM 72V charger for the Talaria Sting MX5 Pro. The MX5 Pro runs a 72V battery system - never use a 60V charger on this bike. If you own multiple Talaria models, label chargers clearly to prevent mix-ups.
Currently unavailable
Aftermarket
Warp 9 High Output LED Headlight Kit 1988lm - Talaria Sting
Lighting
Purpose-built for Talaria Sting MX3/MX4/MX5. Uses Diode Dynamics Series 2 Pro LED - a US-made unit. Note: Baja Designs does not make a Talaria-specific mounting kit; this Warp 9 unit is the leading option.
$260.99
+ shipping
OEM50391-56C00-000
OEM Talaria MX5 OEM 2-in-1 Combination Switch (50391-56C00-000)
Switches & Controls
OEM left-side combination switch for Sting MX5 platform (50391-56C00-000). Confirm pinout on Dragon before install.
$30.99
+ shipping
Currently unavailable
OEM51080-56A00-000
OEM Talaria OEM Tail Light (51080-56A00-000) - Sting MX4 / MX5
Lighting
Factory tail light for Talaria Sting MX4/MX5. Plug-and-play OEM replacement.
$34.99
+ shipping
Currently unavailable
Aftermarket
GritShift Blazer LED Headlight - Talaria MX4 / MX5
Lighting
Direct plug-and-play LED headlight upgrade listed for Talaria Sting MX4 and MX5. Slim bar format with spot/flood pattern.
$25.99
+ shipping
Aftermarket
GritShift Blinder LED Light Bar Headlight - MX4 / MX5
Lighting
Higher-output Blinder light bar with dual flood/spot arrays. Direct-fit for Talaria MX4/MX5 headlight mount.
$42.99
+ shipping
Aftermarket
Project 9 Cyberlight V2 Functional Tail Light
Lighting
Plug-and-play LED tail light with brake response for Talaria / Sur-Ron / E-Ride Pro class e-motos.
$75.99
+ shipping
Aftermarket
Baja Designs S2 Sport LED Headlight Kit
Lighting
Race-quality LED headlight kit listed for Sur-Ron Light Bee and Talaria e-motos. Confirm mount bracket for your fork/fender setup.
$229.99
+ shipping
Aftermarket
Warp 9 High Output Headlight Kit - Talaria Sting
Lighting
High-output headlight kit with Diode Dynamics Series 2 Pro, listed for Sur-Ron Light Bee and Talaria Sting MX3/MX4/MX5.
$260.99
+ shipping
OEM
OEM Color TFT Display - Talaria Sting MX5 Pro
Display / Dashboard
OEM 72V color TFT display for Talaria Sting MX5 Pro and Dragon. Not compatible with the 60V OLED on MX3 and MX4.
$198.99
+ shipping
Currently unavailable
OEM
OEM Throttle - Talaria Sting (All Models)
Controls
OEM replacement throttle for Talaria Sting. Plug-and-play with the stock wiring harness. Dragon (2025) may use an updated throttle spec - confirm fitment before ordering.
$107.99
+ shipping
Aftermarket
GritShift Halo Headlight Kill Switch for Talaria
Switches & Controls
Handlebar headlight on/off switch. Choose oval (Sumitomo) or square (Furukawa) connector variant to match your harness.
$25.99
+ shipping
Aftermarket
Project 9 Turn Signal & Brake Light Kit
Lighting
Plug-and-play turn signal + brake light kit for Sur-Ron, Talaria, and E-Ride Pro platforms.
$296.99
+ shipping
HARDWARE & FASTENERS
1 part
SEATING
5 parts
Aftermarket
Guts Racing Seat Cover - Talaria Sting
Seat Cover
Aftermarket seat cover for Talaria Sting. Multiple grip patterns (ribbed, waffle, bubble) and color options. Guts Racing is the top brand for this category. Check fitment note - MX3 and MX5 Pro may use different seat foam dimensions.
$86.99
+ shipping
OEM41010-56002-000
OEM Seat - Sting MX3 / MX4
Seat
Sting seat height 840mm. X3 seat height is 805mm - different seat.
$50.99
+ shipping
Aftermarket
Guts Racing Gripper Seat Cover - Talaria Sting
Seat Cover
Guts gripper cover for Talaria Sting seat pans (MX3/MX4/MX5). Confirm seat pan shape on Dragon.
$100.99
+ shipping
Aftermarket
Enjoy Gripper Seat Cover - Talaria Sting MX3/MX4/MX5
Seat Cover
USA-made Enjoy gripper seat cover for Talaria Sting MX3/MX4/MX5 pans.
$86.99
+ shipping
Aftermarket
Guts Complete Seat - Talaria Sting
Seat
Complete Guts seat assembly with gripper cover for Talaria Sting platforms.
$172.99
+ shipping
SUSPENSION
16 parts
Universal
Fork Oil SAE 5W - RST Forks (Sting MX3 / MX4 / X3)
Fork Oil
RST fork spec. Expert uses Manitou Dorado - check Manitou spec for correct grade.
$57.99
+ shipping
OEM
Swingarm Bearing Kit - Sting MX3 / MX4
Swingarm Bearings
Swingarm pivot bearing kit for the Talaria Sting MX3, MX4, and MX4 Expert. Replace at first sign of play - loose pivot bearings accelerate frame wear and degrade handling. Replace both sides simultaneously. Service every 30-40 hours in wet conditions.
$18.99
+ shipping
OEM
RST Steering Bumper - Sting MX3 / MX4 / X3
Steering Head Bearings
RST steering bumper for Talaria Sting MX3, MX4, and X3. Prevents over-rotation damage to fork and frame; cross-fits Sur-Ron.
$1.99
+ shipping
Aftermarket40492-56000-000
RST Fork Oil Seal (40492-56000-000) - Talaria Sting MX3 / MX4 (per leg)
Fork Seals
Order 2 for a complete fork seal job (both legs). Newer rubber version (P/N 13512-56000-000) supersedes original - confirm which version ships.
Currently unavailable
Aftermarket
Swingarm Bearing Kit - Talaria Sting MX3 / MX4 / MX5
Swingarm Bearings
Known wear item under hard use. GritShift also sells a full billet linkage upgrade that includes new bearings.
$23.99
+ shipping
Aftermarket
FastAce Rear Shock (New Take-Off / Upgraded Spring)
Rear Shock
FastAce rear shock with upgraded spring rate for Sur-Ron/Talaria-class e-motos. Confirm eye-to-eye and spring rate for Dragon weight.
$178.99
+ shipping
Aftermarket
KKE Performance Upgraded Rear Shock
Rear Shock
KKE multi-adjust rear shock commonly fitted to Talaria/Sur-Ron platforms. Verify spring and length for Dragon.
$309.99
+ shipping
Aftermarket
RFloXa Hawk33 Max Plus Fork - Talaria MX5
Front Fork
Long-travel Hawk33 Max Plus fork designed for Talaria MX5. Requires fork install bearing kit and may need triple-clamp verification on Dragon.
$1,318.99
+ shipping
OEM40499-56C01-000
OEM Talaria MX5 OEM Left Fork Protection Guard (40499-56C01-000)
Fork Guards / Protectors
OEM left (brake-side) fork protector for Talaria MX5 stock forks.
$33.99
+ shipping
Currently unavailable
OEM40499-56C02-000
OEM Talaria MX5 OEM Right Fork Protection Guard (40499-56C02-000)
Fork Guards / Protectors
OEM right fork protector for Talaria MX5 stock front suspension.
$33.99
+ shipping
Currently unavailable
Aftermarket
Heavy Hitter Billet Rear Suspension Linkage - Talaria Sting
Rear Linkage
Pre-assembled 7075 billet linkage with bearings/seals for Talaria Sting MX3/MX4/MX5. Confirm linkage geometry on Dragon before ordering.
$104.99
+ shipping
Aftermarket
Heavy Hitter Reinforced Suspension Triangle - Talaria Sting
Rear Linkage
Billet suspension triangle upgrade for Talaria Sting MX3/MX4/MX5 cast OEM units.
$113.99
+ shipping
Aftermarket
E-Moto Headset / Steering Bearing
Headset
Common 30x47x12mm headset/steering bearing used on Talaria and other light e-motos. Fits upper or lower depending on fork setup.
$23.99
+ shipping
OEM
OEM Left Fork Protection Guard - Talaria Sting MX5 Pro
Fork Guards
OEM left fork protection guard for MX5 Pro DNM fork. MX5-specific - not compatible with RST fork on MX3/MX4.
$33.99
+ shipping
Currently unavailable
OEM
OEM Right Fork Protection Guard - Talaria Sting MX5 Pro
Fork Guards
OEM right fork protection guard for Talaria Sting MX5 Pro. Black plastic guard sized for the MX5 Pro's DNM fork legs.
$33.99
+ shipping
Currently unavailable
OEM
OEM
RST Fork Replacement Seals - Sting MX3 / MX4 / X3
Fork Seals
RST forks - MX3, MX4, X3. Expert uses Manitou Dorado (different seals - see Manitou spec).
$34.99
+ shipping
TOOLS & MAINTENANCE
6 parts
Universal
Gearbox Oil 80W90 - Sting Models
Grease
80W90 gearbox oil for the Talaria Sting gearbox. Change at first sign of dark or metallic appearance, or every 20 hours. Required for all Sting models - the X3 has no gearbox and does not need this service.
$553.99
+ shipping
Universal
Motorex Gear Oil 80W-90 130ml - Talaria Sting Gearbox
Gear Oil
Required gearbox oil for all Talaria Sting models. Change every 10-20 hours of riding. 130ml is one full change.
$22.99
+ shipping
Universal
Maxima Chain Wax for Talaria (Dragon, Komodo +5 more)
Chain Lubricant
Universal chain lubricant. Works on all chain-drive e-bikes. Wax formula reduces fling and keeps chain cleaner longer.
$22.99
+ shipping
Aftermarket
Fork Install Bearing Kit - Talaria
Specialty Tools
Fork install bearing kit used when servicing Talaria forks. Choose the Talaria variant on the product page. Helps clean seal/service jobs.
$44.99
+ shipping
Aftermarket
Bel-Ray Hypoid Gear Oil 80W-90 - Talaria Gearbox
Gear Oil
GL-5 hypoid gear oil commonly used for Talaria gearbox service intervals.
$16.99
+ shipping
Aftermarket
Maxima Chain Guard Lube 17.3 oz for Talaria (Dragon, Komodo +5 more)
Chain Lubricant
Chain lubricant for O-ring/X-ring final drive chains on Talaria and other e-motos.
$16.99
+ shipping
WHEELS & TIRES
20 parts
OEM
OEM Rear Tire 90/80-17 - X3 (xXx)
Rear Tire
OEM 90/80-17 rear tire for the Talaria X3 (xXx). The X3 runs a 17" rear wheel - unique to this model. Not compatible with any Sting variant, which uses 18" or 19" rear wheels depending on trim.
Currently unavailable
Universal
Inner Tube 19" Front - Sting MX3 / MX4 / X3
Front Tube
19" front inner tube for the Talaria Sting MX3, MX4, and X3 - all share a 19" front wheel. Also cross-fits the Sur-Ron Light Bee X front wheel (same 19" spec). Schrader valve standard.
$20.99
+ shipping
Universal
Inner Tube 19" Rear - Sting MX3 / MX4
Rear Tube
19" rear inner tube for the Talaria Sting MX3, MX4, and MX4 Expert. The X3 uses a 17" rear - different tube. The MX5 Pro uses an 18" rear - also a different tube.
$20.99
+ shipping
Universal
Inner Tube 17" Rear - X3 (xXx)
Rear Tube
17" rear inner tube for the Talaria X3 (xXx). The X3 is the only Talaria model with a 17" rear wheel. No Sting variant shares this size - verify your model before ordering.
$20.99
+ shipping
Universal

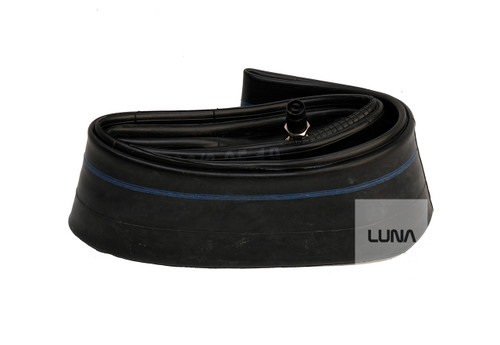

Inner Tube 21"/18" - Sting MX5 Pro
Front Tube
Inner tubes for the Talaria Sting MX5 Pro's 21" front and 18" rear wheels. The MX5 Pro is the only Sting variant with full MX wheel sizing. Other Sting models use smaller wheels and require different tubes.
$12.99
+ shipping
Aftermarket
Dunlop MX34 Front Tire 70/100-19 - Sting MX3 / MX4
Front Tire
OEM tire size for Talaria Sting MX3 and MX4. Dunlop MX34 is a popular intermediate-to-hard terrain choice. Multiple tire brands fit this size - Pirelli Scorpion MX and Maxxis Maxxcross SI are alternatives.
$107.99
+ shipping
Aftermarket
Dunlop MX34 Rear Tire 80/100-19 - Sting MX3 / MX4
Rear Tire
Rear tire for Talaria Sting MX3/MX4. Same tire platform as many OEM-spec mini-MX bikes. Replace front and rear together for best handling. Check rim lock availability for your rim.
$118.99
+ shipping
Aftermarket
Maxxis Maxxcross SI M7311 Front Tire 70/100-19 - Sting MX3 / MX4
Front Tire
Direct fit for stock 19" front wheel on MX3/MX4. GritShift explicitly lists in Talaria MX3/MX4 collection. Anti-flex knob bridges for side-knob stability.
$124.99
+ shipping
Aftermarket
Pirelli Scorpion MX32 Front Tire 70/100-19 - Sting MX3 / MX4
Front Tire
Pirelli MX32 for stock 19" front wheel. Note: Pirelli does NOT make MX32 in 80/100-19 rear - for the MX3/MX4 rear wheel, stick with the OEM CST or consider the 19/16 wheel upgrade.
$72.99
+ shipping
Aftermarket
Dunlop Geomax MX34 Front Tire 80/100-21 - Sting MX5 Pro / Dragon / Komodo
Front Tire
GritShift lists explicitly in Talaria MX5 Pro collection. 21" front is the correct size for MX5 Pro, Dragon, and Komodo.
$179.99
+ shipping
Aftermarket
Dunlop Geomax MX33 Rear Tire 90/100-18 - Sting MX5 Pro / Dragon / Komodo
Rear Tire
Explicitly listed in GritShift's Talaria Sting R MX5 collection. 90/100-18 is correct size for MX5 Pro / Dragon / Komodo 18" rear wheel.
$173.99
+ shipping
Aftermarket
IRC Heavy Duty 3mm Inner Tube 70/100-19 - Sting MX3 / MX4
Front Tube
3mm wall tube reduces pinch flats significantly vs OEM 1-1.3mm tubes. Same product page also sells 80/100-21 (MX5 front) and 100/100-18 (MX5 rear).
$21.99
+ shipping
Aftermarket
IRC Heavy Duty 3mm Tube 80/100-21 Front - Dragon / Komodo / MX5
Front Tube
Japanese IRC 3mm HD tube for 21" front MX tires on Dragon/Komodo/MX5 Pro.
$25.99
+ shipping
Aftermarket
IRC Heavy Duty 3mm Tube 100/100-18 Rear - Dragon / Komodo / MX5
Rear Tube
Japanese IRC 3mm HD tube for 18" rear MX tires on Dragon/Komodo/MX5 Pro.
$25.99
+ shipping
Aftermarket
DirtyBike Front Wheel Bearing Kit - Talaria MX5
Wheel Bearings
Double-sealed front wheel bearing + seal kit sized for Talaria MX5 hubs. Confirm Dragon hub ID before install.
$29.99
+ shipping
Aftermarket
DirtyBike Rear Wheel Bearing Kit - Talaria MX5
Wheel Bearings
MX5-specific rear wheel bearing kit. Not a universal Talaria fit - verify Dragon rear hub before ordering.
$28.99
+ shipping
Aftermarket
Pivotrax Kilowatt Climber Rear Tire 90/100-18
Rear Tire
E-moto-focused 18" rear knobby designed for high-torque climb traction. Confirm stock rear wheel size on your Dragon build (18 vs 19).
$130.99
+ shipping
Aftermarket
BikeMaster Rim Lock 1.60in
Rim Locks
Rim lock for knobby tire security at low pressure. Confirm rim channel width for your wheel.
$12.99
+ shipping
Aftermarket
Warp 9 Titanium Pro Rim Locks
Rim
Warp 9 Titanium Pro Rim Locks for Talaria (Dragon, Komodo, Sting MX3 +4 more). Match photos, connectors, and mounting points to your bike before ordering.
$30.99
+ shipping
Aftermarket
Front Wheel Spacers (Pair) - Talaria / Sur-Ron / E-Ride
Wheel Hub Spacers
CNC aluminum front wheel spacers with O-rings, OEM dimensions. Sold as a pair.
$25.99
+ shipping
From the Blog
Best Aftermarket Upgrades for the Talaria Sting
